Product description
[4000593794241]Notice:This link is for the Micro Inverter 300w"without monitoring system module series"

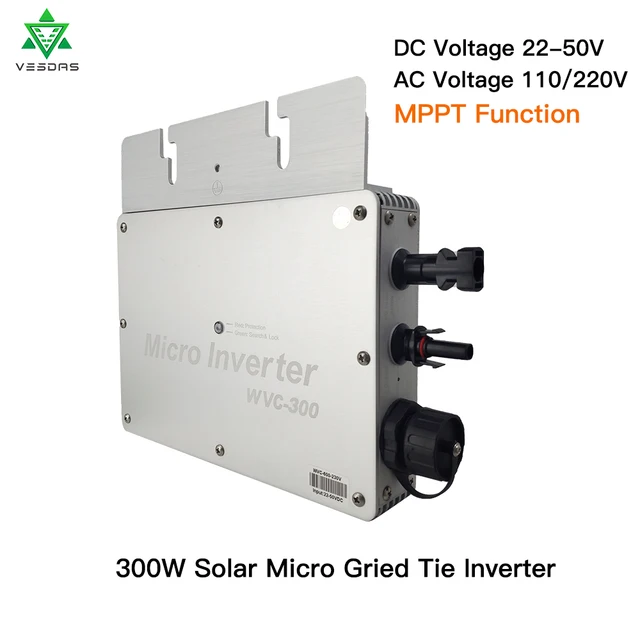

The advantage of WVC300
WVC-300 Using IP65 waterproof streamline design, Can effectively prevent rainwater on the surface erosion, Built-in high-performance Maximum Power Point Tracking(MPPT)Function,Better able to track changes in the solar luminosity and control different output power, Effectively capture and collect sunlight. AC electric power transmission using the reverse transmission technology, Is one of our patented technology, The inverter output power can provide load priority use, Extra electricity to the grid, Efficient use of the inverter to the power emitted, Electricity transmission rate of up to 99%. The inverter can collect real-time data, Inverter can be controlled startup / shutdown / power regulation.
Features
1.High performance maximum power point tracking (MPPT)
2.Reverse power transmission
3.Input /output is fully isolated to protect the electrical safety
4.Multiple parallel stacking
5.Digital control system
6.Simplify maintenance (user serviceable)
7.Operation and maintenan
Input Data
WVC-300-120VAC/230VAC
Recommended input power
300Watt
Recommend the use of PV modules
300W/Vmp>34V/Voc<50V
Maximum input DC voltage
50V
Peak power tracking voltage
25-40V
Operating Voltage Range
17-50V
Min / Max start voltage
22-50V
Maximum DC short current
20A
Maximum Input Current
15.2A
Output Data
@120VAC
@230VAC
Peak power output
300Watt
300Watt
Rated output power
280Watt
280Watt
Rated output current
2.58A
1.39A
Rated voltage range
80-160VAC
180-260VAC
Rated frequency range
57-62.5Hz
47-52.5Hz
Power factor
>98%
>98%
Maximum units per branch circuit
5PCS(Single-phase)
10PCS(Single-phase)
Output Efficiency
@120VAC
@230VAC
Static MPPT efficiency
99.5%
99.5%
Maximum output efficiency
92%
93%
The average efficiency
90%
91%
Night time power consumption
<50mW Max
<70mW Max
THD
<5%
<5%
Exterior
Ambient temperature
-40? to +60?
Operating temperature range (inverter inside)
-40? to +82?
Dimensions (WxHxD)
289mm×200mm×38mm
Weight
1.6kg
Waterproof Rating
IP65
Cooling
Self-cooling
