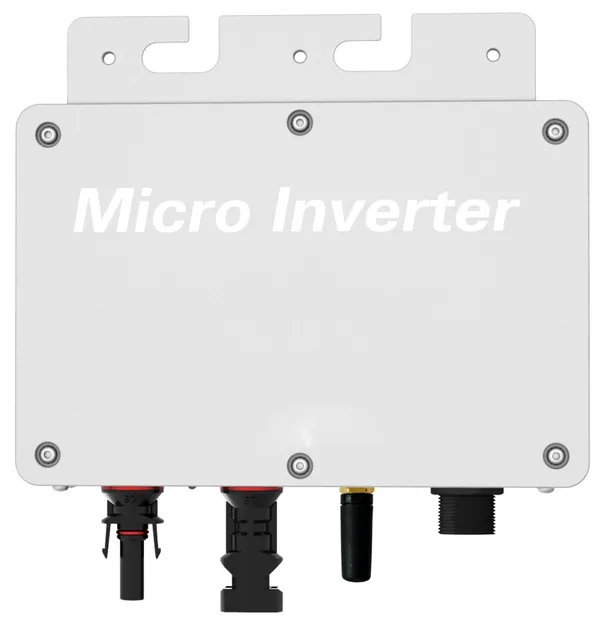

Waterproof 300W solar panel on grid micro inverter max 320w MPPT grid tie inverter
Introduction
Using IP65waterproof streamline design, Can effectively prevent rainwater on the surface erosion, Built-in high-performance Maximum Power Point Tracking(MPPT)Function,Better able to track changes in the solar luminosity and control different output power, Effectively capture and collect sunlight. AC electric power transmission using the reverse transmission technology, Is one of our patented technology, The inverter output power can provide load priority use, Extra electricity to the grid, Efficient use of the inverter to the power emitted, Electricity transmission rate of up to 99%.
Communication using two modes,Between the inverter and CollectorUsing power line carrier communication signals,Collector with a PC or other devices to communicateUsing RS232 serial port/WIFI wireless communication.Intelligent monitoring systems,The inverter can collect real-time data,Inverter can be controlled startup / shutdown / power regulation.
Features
1High performance maximum power point tracking (MPPT)
2Reverse power transmission
3Intelligent monitoring management
4Input /output is fully isolated to protect the electrical safety
5Multiple parallel stacking
6Digital control system
7Simplify maintenance (user serviceable)
8Operation and maintenance costs low
Technical Data
Parameters
KD-WVC-300(Wireless)-120VAC/230VAC
Maximum input power
320Watt
Recommended using solar panels
Power300W,open circuit voltage 36-50VOC
Solar panel open circuit voltage range
36-50VOC
Peak power tracking voltage
22-50V
Min / Max start voltage
Maximum DC short current
20A
Maximum Input Current
12A
Automatic shift AC voltage and output
Automatic shift local grid voltage
Output Data
@120VAC
@230VAC
Peak power output
320Watt
320Watt
Rated output power
300Watt
300Watt
Rated output current
2.5A
1.3A
Rated voltage range
80-160VAC
180-280VAC
Rated frequency range
48-51Hz/58-61Hz
48-51Hz/58-61Hz
Power factor
>99%
>99%
Maximum units per branch circuit
6PCS(Single-phase)
12PCS(Single-phase)
Output Efficiency
Static MPPT efficiency
99.5%
99.5%
Maximum output efficiency
95%
95%
Night time power consumption
<1W
<1W
THD
<5%
<5%
Exterior
Operating temperature range
-40? to +60?
Dimensions (WxHxD)
192mm×176mm×38mm
N.W.
0.9kg
Waterproof level
IP65
Cooling
Self-cooling
Communication Mode
Wireless 433MHz
Power transmission mode
Reverse transfer, load priority
Monitoring System
Lifetime free
Electromagnetic compatibility
EN50081.part1EN50082.part1
Grid disturbance
EN61000-3-2Safety EN62109
Grid detection
DIN VDE 1026 UL1741
Certificate
CEC,CENational patent technology
Package weight
Sepcification
Single(packing)
Whole(16PCS)
G.W.
1.07Kg
19.34Kg
Dimensions
245×202×60mm
450×395×345mm
PV Smart-inverter system components
