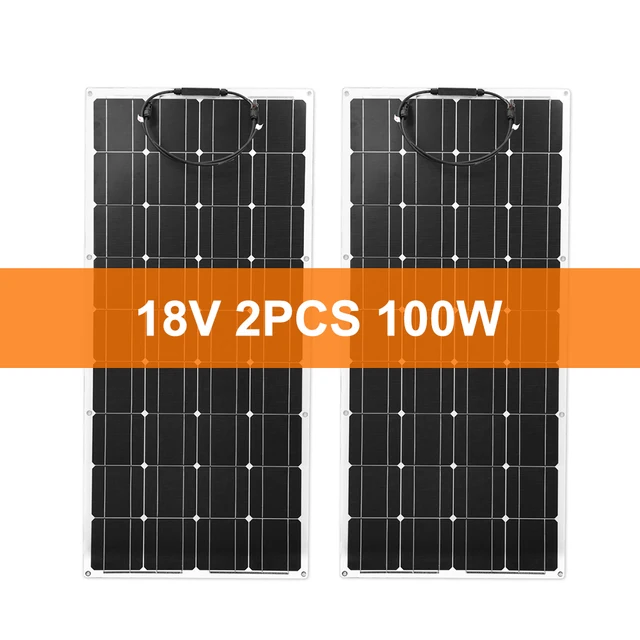

Cheap Offer Dokio 18V 200W Flexible Monocrystalline Solar Panel For Car/Boat/ Home Solar Battery Can Charge 12V with Free Worldwide Shipping!
4.89
Related Products :
Dokio 2PCS 12V 100W Flexible Monocrystalline Solar Panel For Car Battery & Boat & Home 200w 300w 1000w 18V Solar Panel China
DOKIO 100W 18 Volt Black Solar Panel China Cell/Module/System/Home/Boat 100 Watt Panels charger Solar
DOKIO 12V 100W 32 cells monocrystalline silicon solar panel waterproof ultra-thin 16V China solar panel For Home # 16VDFSP-100M
Dokio 18V 1000W Flexible Monocrystalline Solar Panel For Car/Boat/ Home Charge 12V Waterproof Solar Panel China
Product description
[4000467863647]Descriotion
Model:DFSP-100M
Material:Monocrystalline Silicon
Maximum Power(Pmax):100W±3%
Maximum Power Voltage (Vmp):18V
Maximum Power Current (Imp):5.56A
Open-Circuit Voltage (Voc):22.50V
Short-Circuit Current (Isc):5.81A
Nominal Operating Cell Temp.(NOCT):-45to 80?
Maximum System Voltage:DC1000V
Maximum Series Fuse:15A
Net Weight:1.1kg
Dimension:1180*540mm
Package Weight:3.9kg
Package Dimension:1230*580*60mm
(The above data is based on the laboratory standard test environment)
For field connections,use minimun No.12AWG copper wires insulated for a minimum 90?
Standard Test Conditions:
AM=1.5 IRRADIANCE=1000W/m2 Temp.=25?
Material structure:
1 floor: ETFE
2 floor: EVA Film
3 floor: High Efficiency Solar Cell
4 floor: EVA Film
5 floor: TPT Backsheet
waterproof level:IP67(Junction Box)
(The size is manually measured and there is a certain error. Customers who want accurate size please don't buy,thank you)
16V 100W VS 18V 100W
18v100W, 4*9,36Cells.
16v100W, 4*8, 32Cells.
Wide range of applications
Easy to use:Semi-flexible panels can be mounted on irregular surfaces such as RV roofs, boats, tents, vaulted roofs, etc. Up to 30 degrees.
High efficiency, Light weight:only 1.5mm thick, weight 1.1kg, easy to hang, disassemble and carry.
Easy to install: Metal holes in the four corners of the product for fixing screws and mounting. Each solar panel has been tested several times.
As a professional solar panel manufacturer with more than ten years of production experience. Choose us, your interests will be the best protection.
Our Advantages
The surface is made of ETFE advanced materials. It is more durable than the PET materials used by other sellers on the Aliexpress.
The junction box on the back of the solar panel is IP67 rated, and the waterproof rating is the same as IPHONE X and IPHONE 8 PLUS.
The junction box on the back of the solar panel has a Schottky diode built in to prevent reverse current.
About transparation:
ForBrazilian customer: Since the size of this product exceeds the size limit of Brazil Post, we need to use other logistics delivery. Other logistics companies will charge an additional fee.
If you are willing to pay additional fees, please send us the address information and CPF before placing the order. We will ask the logistics provider for the amount.
The transportation method of the product is for reference only. Aliexpress standard shipping has listed solar panels as prohibited products.
We will choose EMS, DHL, UPS, FEDEX, DPEX and other commercial express according to the specific situation.
FAQ
What is the difference between a 32 cells solar panel and a 36 cells solar panel?
The solar panel voltage of 32 cells is 16v, and the solar panel voltage of 36 cells is 18v. Compared to 18v solar panels, 16v solar panels do not perform as well as 18v solar panels in the morning and evening.
If your country has plenty of sunshine, then 16v solar panels can also achieve 18v performance.
Why did the title write 12V solar panels, and the product page wrote 18v solar panels?
Many customers will have a misunderstanding when choosing solar panels. They want to buy 12v solar panels to charge 12v batteries.
In fact, the voltage of the solar panel is affected by the light intensity. If the light is weak, the voltage of the solar panel will drop.
We set the solar panel voltage to 16v-18v to ensure that the solar panel still maintains enough voltage to charge the battery when the light is weak.
Why did I not get 100w in the actual test of the 100w solar panel I purchased?
The maximum power of this solar panel is 100w, the maximum is obtained in the laboratory.
Due to geographical constraints, most areas cannot get the maximum power of 100w.
So how do you test the maximum power of a solar panel in your-self area?
Wait for a sunny day, flatten the solar panels on the ground at 12 noon. Use a multimeter to test the metal sheets in the solar panel junction box, or directly test the MC4 connector.
