Product description

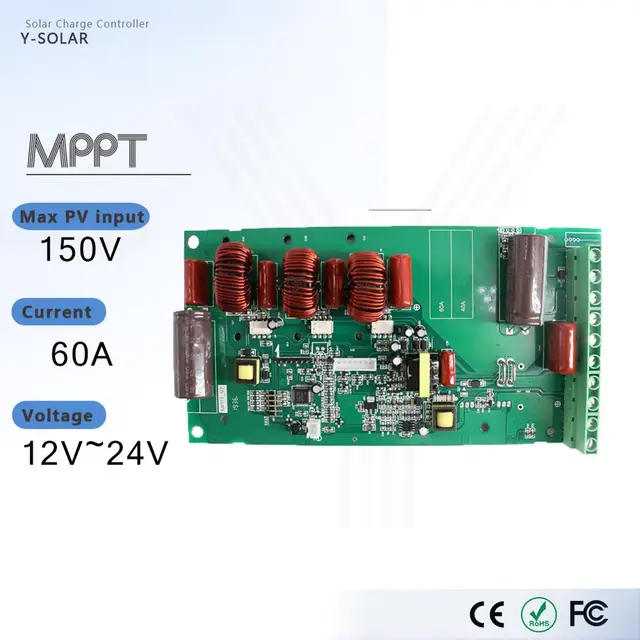

[32837176231]Charger Board MPPT-60A Solar Controllers Charging Module Solar Panel Controller Lithium Battery With Screen and Fans
>>Features
100% MPPT controller
Intelligent Maximum Power Point Tracking technology
Built-in DSP controller with high performance
Automatic battery voltage detection 12V/24V/36V/48V
Three-stage charging optimizes battery performance
Multi-function LCD displays
Reverse polarity protection of solar panel
Overcharge protection
Can be mounted easily
Suitable for battery types of sealed lead acid, vented Gel, and Lithium battery
>>Specification
?Model No.
MPPT-60A
Charging mode
MPPT Maximum power point tracking automatically
Charging
3-stage:constant current(MPPT), constant voltage(Absorption Voltage), floating charge
System type
DC12V/24V/36V/48V Recognition automatically
System voltage automatic recognition
12V system (DC9V-DC15V)
24V system (DC18V-DC29V)
36V system (DC30V-DC39V)
48V system (DC40V~DC60V)
Soft start time
≤1S
Dynamic response and recovery time
100us
Max efficiency
≥98.1% (Voc is 1.5 or 2 times than battery, then it’s best efficiency)
PV utilization
≥99%
Input specification
Voc from PV
( Make sure the Voc of PVmeeting the requirement as right. Voc is 1.5 or 2 times than battery, then it’s best efficiency. )
12V system (DC20V~DC80V)
24V system (DC37V~DC105V)
36V system (DC50V~DC160V)
48V system (DC72V~DC160V)
The maximum PV input voltage (Voc)
DC190V(The controller can’t work at this voltage of long duration that will break controller. Please refer to Input voltage from PV.)
The maximum PV input power
(The total power rated of PV can’t be over this watt that will break the controller.)
12V system (720W)
24V system (1440W)
36V system (2100W)
48V system (2800W)
Output specification
Selectable battery type(default is Sealed)
Vented/ Sealed / Gel / NiCd / Lithium battery(defined voltage for other battery by user)
Absorption Charging Voltage
?Refer to Batteries charging reference
Floating Charging Voltage
Overcharging protection voltage
12V system (15V)
24V system (30V)
36V system (45V)
48V system (60V)
Rated output current
60A
Temperature Coefficient
±0.02%/ centi-degree
utomatic temperature compensation
14.2V-(Max temperature-25 centi-degree)*0.3
Output voltage ripple-peak
100mV
Output voltage accurac
≤±1%
Input Anti-intrusion protection
yes
Temperature Protection
75°C
Temperature increased protection
Output power will reduce when it’s more 70 °C
Output power will be normal when it’s less 55 °C
Fan-on temperature
>40 °C
Fan-off temperature
<35 °C
Acoustic noise
≤40dB
Cooling way
Forced air cooling.
Components
Imported materials,Accord to EU standards, Industrial grade range.
Environmental requirements
Meet 2002/95/EC; No cadmium, hydrides and fluorides
Security Level
Accord to CE,PSE,FCC,EMC,EN60950
Electromagnetic Compatibility
Accord to EN61000,EN55022,EN55024
Enclosure
IP21
PACKAGE:
If something miss, pls contact service on store first, will refund or resend again .
