US $194.95Original Price : US $278.50 (30%)

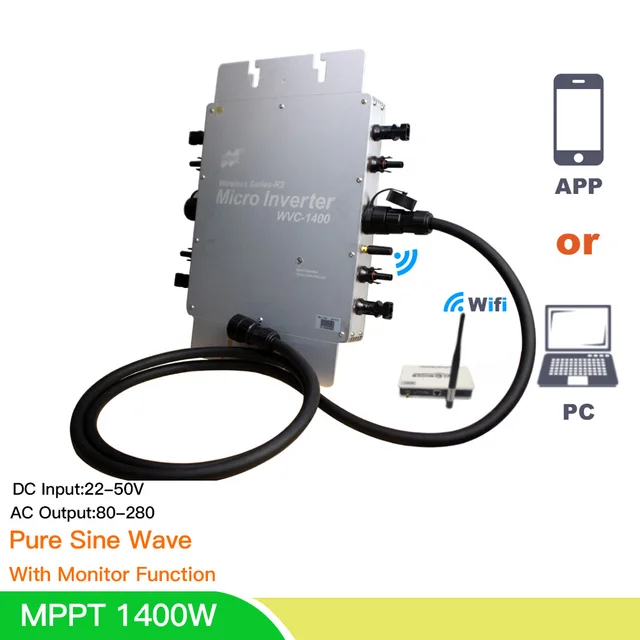

Discount Offer 1400W MPPT Micro Solar Inversor On Grid Tie Home Inverter Pure Sine Wave 24/36/48VDC 110/220V 50/60 with FREE Worldwide Shipping!
4.71
Related Products :
1400W MPPT Micro Solar Inversor On Grid Tie Home Inverter Pure Sine Wave 24/36/48VDC 110/220V 50/60HZ For 4*350W Solar Panel
700W Micro Solar Inverter Single/Three Phase MPPT On Grid Tie Inverter Pure Sine Wave 22-50VDC to 110/220VAC for 2*350W Panel
Home Micro 1200W Solar On grid Tie Inverter MPPT Pure Sine Wave 22-50VDC 110/220VAC 50/60HZ Auto Match for 4*300W Solar Panel
1 Year Warranty 1200W MPPT Micro Solar On Grid Tie Inverter IP65 With Pure Sine Wave 24/36/48VDC 110/220V AC for home Inversor
Product description
[4000781851170]?High Performance Automatic Power Point Tracking (MPPT)
?Full digital control
?Reverse power transmission
?Intelligent monitoring management
?Input and output are completely isolated to ensure safe use of electricity
?High reliability multiple parallel stacking
?Simplify maintenance work (user self-maintenance)
?Low operating and maintenance costs
?Flexible installation
?Use WiFi 2.4G/433MHz communication mode
Introduceof WVC1400
WVC-1400-R3 Version Using IP65 waterproof streamline design, Can effectively prevent rainwater on the surface erosion, Built-in high-performance Maximum Power Point Tracking(MPPT)Function,Better able to track changes in the solar luminosity and control different output power, Effectively capture and collect sunlight. AC electric power transmission using the reverse transmission technology, Is one of our patented technology, The inverter output power can provide load priority use, Extra electricity to the grid, Efficient use of the inverter to the power emitted, Electricity transmission rate of up to 99%.
Input Data
WVC-1400
Recommended input power
1400Watt (4x350-400W)
Output voltage mode
Automatically switch 120/230V according to local grid
Solar panel open circuit voltage range
36-50VOC
Peak power tracking voltage
17-50V
Operating Voltage Range
22-50V
Min / Max start voltage
22-50V
Maximum DC short current
93
Maximum Input Current
63A
Output Data
@120VAC
@230VAC
Peak power output
1400Watt
1400Watt
Rated output power
1400Watt
1400Watt
Rated output current
11.6A
6A
Rated voltage range
80-160VAC
180-260VAC
Rated frequency range
48-51Hz/58-61Hz
48-51Hz/58-61Hz
Power factor
>99%
>99%
Maximum units per branch circuit
3PCS(Single-phase)
5PCS(Single-phase)
Output Efficiency
@120VAC
@230VAC
Static MPPT efficiency
99.50%
99.50%
Maximum output efficiency
99%
99%
The average efficiency
99%
99%
Night time power consumption
<1W Max
<1W Max
THD
<5%
<5%
Exterior
Ambient temperature
-40Cto + 65C
Operating temperature range (inverter inside)
-40Cto +82C
Dimensions (WxHxD)
370mm x 300mm x 41.6mm
Weight
4kg
Waterproof Rating
IP65
Cooling
Self-cooling
Feature
Communication Mode
433/462MHz Wireless Communication
Power Transmission Mode
Reverse transfer, load priority
Monitoring System
APP?PC Browser
Grid Detection
DIN VDE 1026 UL1741
Electromagnetic Compatibility
EN61000-3-2 Safety EN6209
Certificate
CE, FCC, ROHS
installation of micro inverter
Step1Installation for fixed the inverter on the PV holder with the screws attached is as following:
Step2Connect the two DC terminal of the PV to the inverter,positive to positive, negative to negative. Show below:
Step3Open the waterproof cap on AC output side of the micro inverter, then plug to AC power line. Show below
Step4Plug the AC output line to main AC cable;
Step5Repeat the first step to the third step to complete the installation of micro inverters;
Step6Finally, please connect the AC main cable to the utility grid to run renewable energy and saving $$$
?
Introduce of WIFI Modem
Package Includeing:
1. WVC1400 inverter *1
2. Connector*1( About 2m)
3. User Manual
4. Screws
